Machine Roomless MRL Freight Elevator With Steel Plate Floor for building

Name: Machine Roomless MRL Freight Elevator With Steel Plate Floor for building
Brand: SUNNY
Price: 7000 USD

China Machine Roomless MRL Freight Elevator With Steel Plate Floor for building factory

Brand Name : SUNNY

Model Number : Machine Roomless (MRL) Freight Elevator

Certification : CE,ISO9001

Place of Origin : China

MOQ : 1Set

Price : $7000~12000

Payment Terms : Western Union, T/T, L/C,Paypal

Supply Ability : 500 Set/ Year

Delivery Time : 15~30 days

Packaging Details : wooden case

Name : Freight Elevator

Load : 1000~5000kg

Speed : 0.5~2 m/s

Type : Elevator

Control system : VVVF Elevator Control System

Keywords : Passenger Elevator Lift

Traction machine : Gearless Traction Machine

Application : Medical Passenger Elevator

Model : Freight Elevator

Product : Freight Elevator

Contact Now

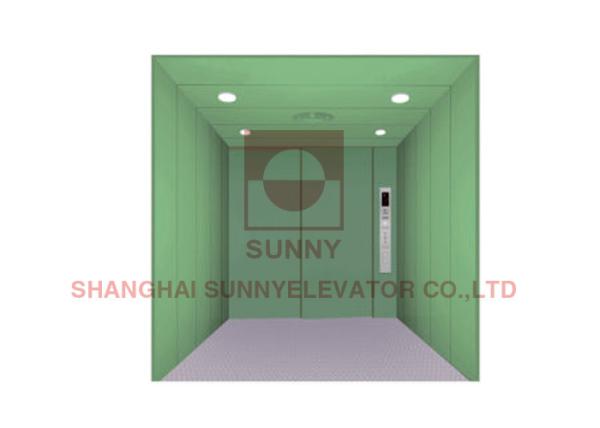

Machine Roomless (MRL) Freight Elevator with Steel Plate Floor
Machine Roomless MRL Freight Elevator With Steel Plate Floor for building

Machine Roomless (MRL) Freight Elevator specifications

Load (kg)	Speed (m/s)	Exterior size of car width x depth x height(mm)	Net door opening width x height(mm)	Shaft size(mm)			Door Open type
Load (kg)	Speed (m/s)	C.WxC.DxD.H	2P Central opening	width x depth(mm)	Overhead height	Pit depth	Door Open type
1000	0.5	1500x1800x2200	1200x2100	2250x2200	4500	1500	Two panel side opening
	1.0				4500	1500
	1.5				4600	1600
	2.0				4800	1800
2000	0.5	2000x2300x2200	1500x2100	3150x2660	4800	1500	Two panel side opening
	1.0				5000	1500
	1.5				5200	1600
	2.0				5200	1800
3000	0.5	2470x2560x2200	1800x2100	3700x3000	5000	1600	Four panel center opening
5000	0.5	2800x3400x2500	2400x2400	4250x3800	6100	1600	Four panel center opening

Machine Roomless (MRL) Freight Elevator Construction Layout Drawing

Machine Roomless MRL Freight Elevator With Steel Plate Floor for building

FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
